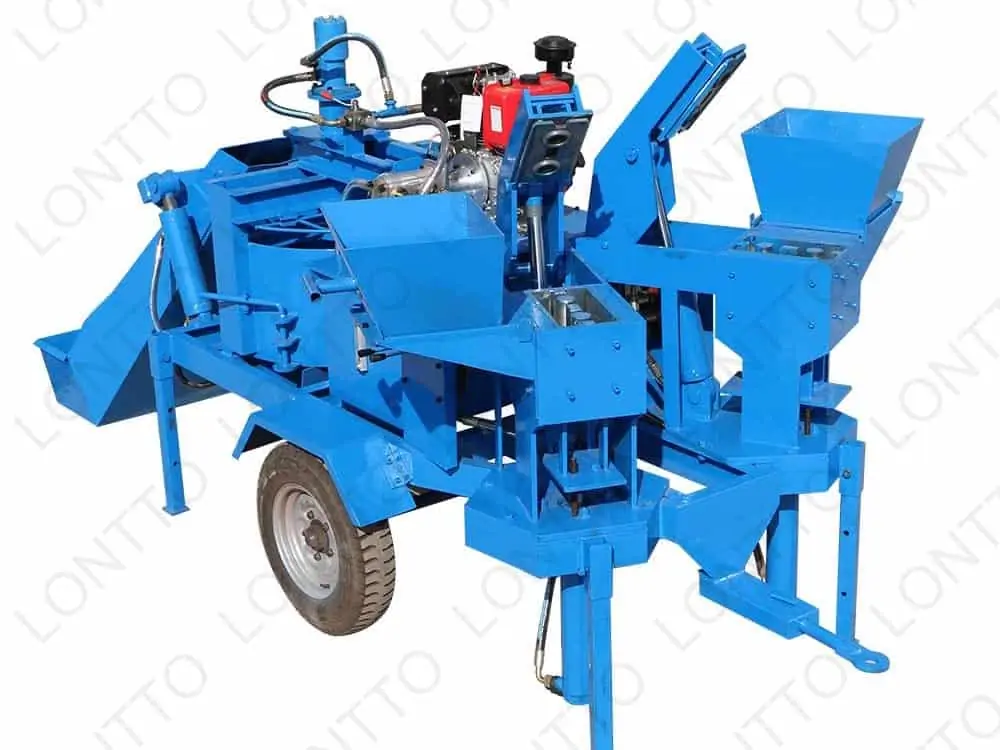

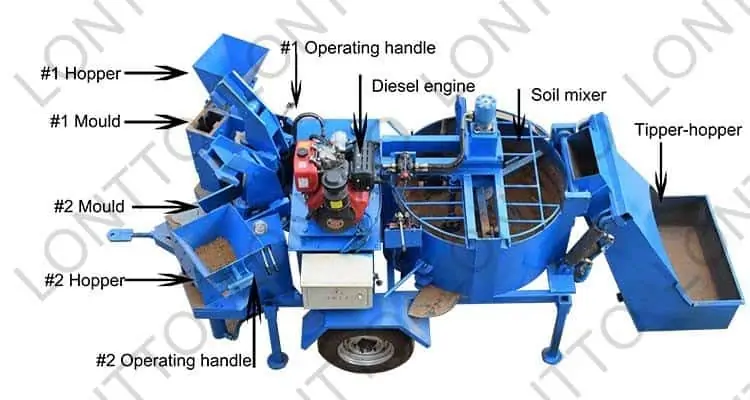

M7MI TWIN clay brick machine is the newest design, which has two mould, two operation platform, can produce two bricks one time. M7MI TWIN brick machine has two oil cylinders, and the cylinders motor and valve imported from Japan and Italy, the materials is soil clay or concrete. The power source can be diesel or electric, so it is better for the place which is power shortage.
The Hydraulic cooling system is controlled by a temperature controlling switch, run automatically, according to the hydraulic oil temperature, reducing energy consumption.
Finished products molding from hydraulic system driver, hydrostatic pressure to make it complete.
The production of interlocking bricks bearing strength can reach above 12mpa, high compactness, frost resistance, impermeability performance is good, sound insulation, heat insulation.
And also heat preservation performance is good, appearance size accurate, is the ideal environmental protection and building materials equipment.
Advantage of M7MI TWIN Clay Brick Machine
1.The mould uses precise wire cutting technology and carburizing heat treatment technology to prolong its service life.
2.The machine adopts  hydraulic molding technology, so the blocks produced are of better quality, larger density and higher strength.
3.The brick machine can produce many kinds of interlocking blocks just by changing the mould.we can design the shape and size of mould according to customer requirements.
4.You can easily move the machine wherever you want because the machine is equipped with wheels

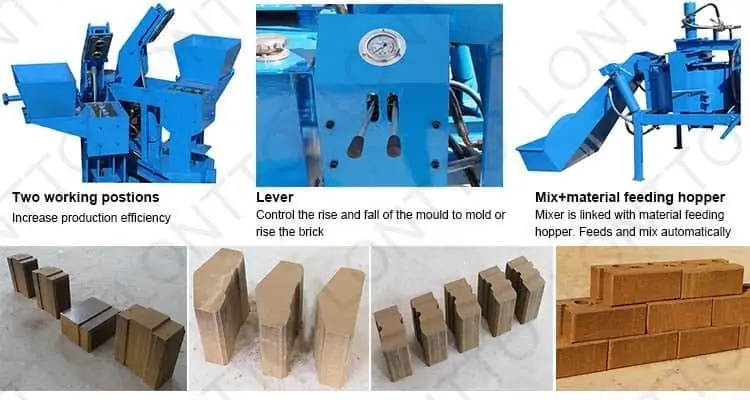

5.It have two working position,production capacity 3840pcs / 8H.
Dimension | 3900x1900x1700mm |
Power | 12 HP Diesel Engine |
Pressure | 25Mpa |
Volume of mixer | 180L |
Forming period | 15S-20S |
Weight | 1.5T |
Raw Material | Clay ,soil ,cement ,sand,concrete. |
Brick Size | 230~290mm(L)*200~220mm(W)*100~115mm(H) |
