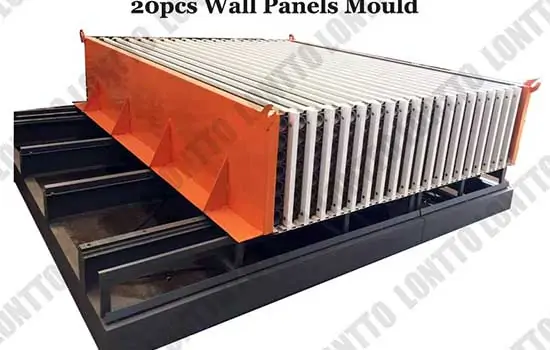

Horizontal Type Lightweight Wall Panel Production Line(20PCS Panels/MOULD)

This machine is multifunction, the panel length and thickness can be changed, is suitable for producing GRC, magnesite, gypsum, ceramic, composite sandwich panels, solid panels,hollow panels and other lightweight panel.

Advantage and characteristic of H-TYPE Lightweight Wall Panels Machine

  1. Adopt draw-tube by machinery, has high level of automation.
  2. The core tube is plastic, can be free washing.

Main feature of H-TYPE Lightweight Wall Panels Machine:

  1. PLC control system, the mould opening and closing is hydraulic, can be controlled automatic.
  2. The wall panel machine can produce the lightweight panel length of 3M, width of 60cm, thickness of 60-200mm. Panel size also can be produced by customer requirement.
  3. The heating system can be electricity or steam. Demoulding fast, short time conservation, the cost is much less.
  4. Foring moulding chamber is high stiffness. Panel making is high precision, the thickness is prospective, the surface of panel is smooth.
  5. Plastic core tube is lining metal tube, durable in use, Free washing,Pulling tube by electric.
  6. Continuous stow net design, cloth mesh uniform, accurate and convenient.

wall panel

lightweight wall panel

Accessory Equipment:

wall panel machine parts

Performance index of Wall Panels:

ITEM Item index Measured results
1 dry apparent density,kg/m3,≤ 350 Qualified
2 thermal conductivity,W/(m.k)≤ 0.07 Qualified
3 heat storage coefficient,m2.k/w,≥ 0.9 Qualified
4 compressive strength,MPa,≥ 0.50 Qualified
5 4h Water absorption equilibrium,g/(m2.h)≤ 50 Qualified
6 compressive strength after immersion,MPa,≥ 0.4 Qualified
7 frost-resistance,mass loss,%,≤ 5.0 Qualified
8 Frost Resistance,Freezing strength,MPa,≥ 0.3 Qualified
9 combustion performance A1 Qualified
