How Does a Brick Kiln Work? | The Brick Firing Process

Running a brick kiln isn’t just about burning clay in a furnace. It’s a controlled firing process that transforms raw clay bricks into durable building materials through carefully managed heating and cooling cycles. Whether the kiln is a simple trench or a modern tunnel kiln, the principle remains the same: the temperature is increased to harden the ware, then reduced slowly so the bricks are allowed to cool without cracking.

A brick kiln operates by moving air flow and heat through stacked bricks to reach the required internal temperature. Each type of kiln follows this same universal process but applies different brick kiln technology to control fuel use, manage drought and improve product quality.

Principaux enseignements

• A brick kiln works by moving heat and air flow through stacked bricks, raising the internal temperature and then allowing the ware to cool slowly.
• The firing process has clear steps: loading the kiln, stacking clay bricks, raising heat until the firing is completed and managing cooling cycles before the ware is removed.
• Two types of kilns dominate brickmaking: intermittent and continuous. Each type of kiln has its own advantages and disadvantages in terms of fuel use, labour costs and quality control.
• A chimney and controlled draught help regulate how the kiln operates, keeping temperatures steady and the process easy to control.
• Modern kiln technology such as the tunnel kiln and shuttle kilns reduces high labour demands, lowers wood consumption and improves efficiency compared to traditional beehive or trench kilns.

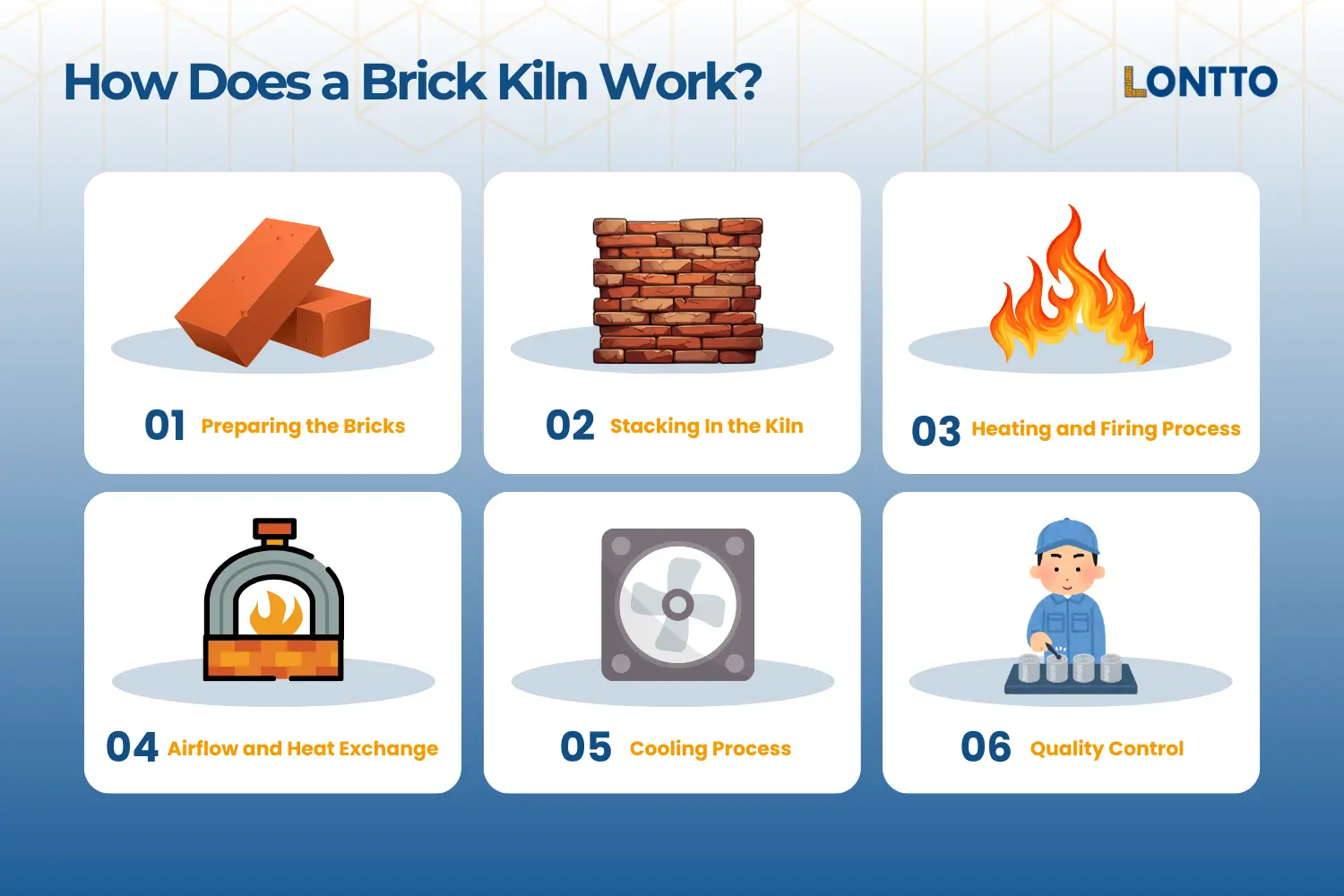

How Does a Brick Kiln Work? Step-by-Step Process

The operation of a brick kiln follows a clear sequence. From raw material preparation to when the ware is removed, each stage of the firing process must be carefully managed. This step-by-step overview shows how bricks are formed, stacked, heated, cooled and tested for strength.

1. Preparing the Bricks

The first step in brickmaking begins long before heat enters the kiln. Clay bricks are produced by extracting clay, removing impurities and kneading the material until the moisture content reaches a balanced level. Proper moisture control prevents cracks once the temperature is increased inside the brick kiln.

The clay is then shaped into standard blocks and left for wood drying or sun drying. During this stage, the bricks lose excess water naturally, which reduces labour during firing and lowers wood consumption once fuel is applied. After drying, the bricks are stacked and prepared for loading the kiln as part of the kiln charge.

2. Stacking In the Kiln

In every kiln, the way bricks are stacked affects how well the fire moves through the system. Inside the kiln, workers place the dried units on the kiln floor in lattice patterns with open gaps. These gaps guide air flow, allowing heat to travel around the kiln and rise toward the chimney.

The approach depends on the type of kiln. In a beehive or trench kiln, the process is a batch: the load is fired, the firing is completed, and the ware is cooled before the ware is removed. In more advanced designs, the stacked bricks control the draught through the roof of the kiln and out the chimney stack, while the door of the kiln is sealed so the kiln is closed during firing.

3. Heating and Firing Process

The heart of how a brick kiln works is the firing stage. Once the kiln charge is in place, fuel is added through openings along the walls. Depending on the design, the fire may be powered by coal, firewood, gas or electricity. A burner and flue system helps control how the kiln operates and how evenly the ware is directly heated.

The firing process passes through zones. In the preheating stage, moisture is driven out of the bricks. In the burning zone, the temperature is increased to 1,650 to 2,000 °F (899 to 1,093 °C) until the firing is completed. During soaking, the heat is held steady so the chemical and physical changes in the clay give strength to the finished units.

Different types of brick kilns manage heat in different ways. In an intermittent kiln, the fire runs as a batch: once loaded, the door of the kiln is shut, the cycle runs and the ware is cooled before the kiln is cleaned. In continuous designs such as a zig zag or tunnel kiln, the fire continues through the kiln and the temperature is reduced gradually as the load moves forward.

4. Airflow and Heat Exchange

Air movement is what keeps the firing process steady. Fresh air enters through the cool entrance, flows across the stacked bricks and absorbs heat from recently fired zones. This preheated air then passes into the burning zone, helping the kiln operate with less fuel.

As the gases move forward, the temperature is reduced and the air exits the kiln nearly fully cooled through the chimney. In a well-designed system, the flow ends with air leaving the kiln nearly at room temperature, which shows that most of the heat has been transferred to the ware.

To make the kiln more efficient, builders often insulate the walls and roof, reducing heat loss during circulation. Controlled draught and balanced air flow mean the load fires evenly and remains easy to control during operation.

5. Cooling Process

After the firing is completed, the ware is cooled slowly to prevent cracking. In an intermittent kiln, the door of the kiln stays closed while the cooling cycles run their course. The load is allowed to cool naturally until the ware is removed.

In continuous systems, the temperature is reduced as the fire continues through the kiln. Fresh air enters from the cool entrance, flows across the load, and leaves through the chimney stack. By the time the stream reaches the end, it exits the kiln nearly at room temperature.

Proper cooling is as important as firing. If the ware cools too fast, the chemical and physical changes inside the bricks can reverse, weakening their structure. A carefully timed cycle produces strong bricks that are ready for use.

6. Quality Control

Every load must be checked before it leaves the brick kiln. The ware are inspected for uniform color, strength, and shape. Temperature logs and air flow records show whether the cycle stayed steady and the firing process was consistent.

The kiln is cleaned after each batch, with ash, dust and debris removed so the next kiln charge can be stacked without contamination. In advanced operations, refractory linings and insulation help maintain even heat, making the system easy to control.

Some sites also use technical ceramics to monitor high-temperature zones. These gauges confirm that the chemical and physical changes in the clay bricks were completed and the load has reached full strength. With these checks, the ware is removed confidently, ready for construction use.

What Are the Two Types of Kilns Used in Brickmaking?

There are two types of kilns used in brickmaking: intermittent and continuous. The difference lies in how heat is applied. An intermittent kiln fires bricks in a batch, with each cycle of heating and cooling completed before the next load.

A continuous kiln keeps the fire running and the bricks moving, so the firing process never stops. This classification is based on production flow and heat usage, with each type of kiln having its own advantages and disadvantages.

Intermittent Kilns

In an intermittent kiln, bricks are stacked, fired and then cooled as a batch. The door of the kiln is closed during operation, and the cycle runs until the firing is completed. After that, the ware is cooled, the kiln is cleaned, and the ware is removed before the next load begins.

Because the temperature is reduced with every cycle, much of the heat is lost, making fuel use less efficient. Common examples include clamp kilns, scove kilns, and scotch kilns without chimneys, though some have chimney stacks to improve air flow. These designs remain in use in many regions due to their low cost and simple construction, even though they require high labour and cause more emissions.

Continuous Kilns

A continuous kiln keeps the fire running and the heat moving around the kiln. Bricks pass through zones where the temperature is increased, held steady and then are cooled gradually at the cool entrance. The load continues through the kiln without pause, and the gases exit the kiln nearly at room temperature.

This design uses fuel more efficiently, delivers consistent results, and is easier to scale for industry. Examples include the tunnel kiln, Bull’s Trench kiln, Hoffmann kiln, shuttle kiln and zig zag kiln.

In many plants, shuttle kilns may be equipped with automation, and because shuttle kilns can be either updraft, they adapt to a wide range of technical ceramics and clay bricks. Modern brick kiln technology favors continuous systems because they lower wood consumption, reduce emissions and improve quality.

Do All Types of Brick Kilns Work the Same Way?

All brick kilns follow the same principle: heat is applied to dried bricks, the temperature is increased to complete the firing process and then the load is allowed to cool. What changes are the design, the way air flow and draught are managed, and how fuel is supplied. Each type of kiln has unique advantages and disadvantages, which affect quality, efficiency and labour costs.

Clamp Kiln

A clamp kiln is a temporary structure often used in small-scale brickmaking. The bricks are stacked in layers with fuel placed in between, then covered with earth to retain heat. Once the fire is lit, the firing is completed as a batch, and the ware is cooled naturally. While simple and low cost, clamp kilns have the disadvantage of uneven results and high labour demands.

Bull’s Trench Kiln

The Bull’s Trench kiln is one of the most common continuous systems in developing regions. Built in a circular or oval trench, it relies on controlled draught and a central chimney to keep the fire moving around the kiln.

Workers feed fuel through openings, and the kiln charge advances gradually. This design lowers wood consumption and produces stronger bricks, but it still requires steady labour management.

Hoffmann Kiln

A Hoffmann kiln is made up of connected chambers that run in a loop. While one chamber is firing, others are being loaded, cooled or cleaned. The heat continues through the kiln, making the cycle fuel-efficient.

Doors seal each section so the kiln is closed during operation, and the roof of the kiln helps retain heat. With its continuous system, the ware is removed from one chamber while firing moves to the next, keeping production steady.

Tunnel Kiln

The tunnel kiln is the modern industrial standard. Bricks move on kiln cars through zones for drying, firing and cooling. This design keeps the temperature is reduced gradually, so the load exits the tunnel kiln evenly fired. A car-bottom kiln with a door can also be used for specialized technical ceramics.

In some plants, shuttle kilns may be equipped with automation, and since shuttle kilns can be either updraft or downdraft, they adapt to different products. The shuttle kiln derives its name from the fact that kiln cars move the load, and because kiln cars can enter or exit a shuttle kiln from either end of the kiln, handling is flexible.

How Does a Brick Kiln Work FAQs

How long does the firing process take?

In most cases, the firing process lasts 10 to 12 hours, followed by carefully managed cooling cycles. The temperature is increased in stages until the firing is completed, then the ware is cooled slowly. This balance ensures the chemical and physical changes in the clay are complete, giving strong bricks that last.

What types of fuel are commonly used in brick kilns?

Brick kilns traditionally burn coal, firewood or agricultural waste, with a wood charge often added in intermittent kilns. Modern brick kiln technology uses a burner and flue system powered by natural gas, oil or electricity. In continuous designs like the tunnel kiln or zig zag kiln, fuel is used more efficiently as heat continues through the kiln and the ware is cooled gradually.

What role does moisture content in clay play before firing?

The moisture content of clay determines how well clay bricks dry before entering the brick kiln. If water isn’t reduced during wood drying or sun drying, the firing process can cause cracks when the temperature is increased. Proper moisture control lowers labour costs, reduces wood consumption and ensures the ware is cooled and finished evenly.

Can brick kilns use renewable or eco-friendly fuels?

Yes, many brick kilns now adapt their firing process to use eco-friendly fuels such as biomass, crop residues or biogas. These alternatives lower wood consumption and emissions compared to coal or a traditional wood charge. In modern brick kiln technology, a burner and flue system can also run on renewable gas or electricity, making the kiln more efficient and easier to control.
