Hand Brick Making Machine
- These high-tech machines have an easy manual operation that reduces the manual labor cost.
- Each mold life is more as compared to other machines because the operation is manual and the form cycle varies from 5 to 45 seconds.
- More than ten options for hand brick-making machines.
- Cost is flexible, covers business from small to large categories.
- Highly trained technicians and engineers to take care of training and installation.
- Competent customer care for resolutions and troubleshooting.
Send Us Your Inquiry Today
QMJ2-40 hand-operated fly ash block-making machine is the smallest one from Lontto. Everything is done manually from spreading the material on the molds to decoupling and moving the machines.
You will require a solid base for laying down the blocks. Uses only 2 block mold in its operation. Although it’s lightweight, two wheels at the base make the movement easy after laying down the blocks.
Technical Specifications:
- Block Size: 400x200x200mm
- Blocks produced: Hollow and Solid
- Capacity: 180 hollow blocks/hour
- Weight: 215 Kg
- Molding Time: 40 to 45 seconds

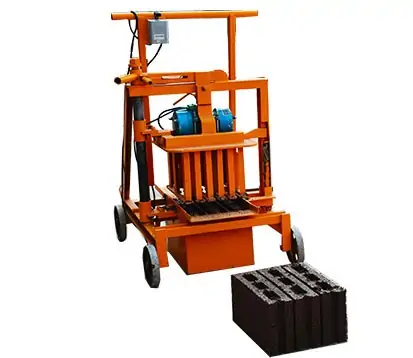

QMJ2-40 Hand Fly Ash Block Making Machine
QMJ2-40 hand-operated fly ash block-making machine is the smallest one from Lontto. Everything is done manually from spreading the material on the molds to decoupling and moving the machines.
You will require a solid base for laying down the blocks. Uses only 2 block mold in its operation. Although it’s lightweight, two wheels at the base make the movement easy after laying down the blocks.
Technical Specifications:
- Block Size: 400x200x200mm
- Blocks produced: Hollow and Solid
- Capacity: 180 hollow blocks/hour
- Weight: 215 Kg
- Molding Time: 40 to 45 seconds
QMJ4-45 has a vibrator motor that helps perform the molding of the blocks. Raw material like coal fly ash and other industrial waste material can also be used for making the blocks. This machine saves the cost of making a kiln to heat the blocks.
With a 7 piece mold with this machine, you can produce 560 blocks in an hour. Requires only 6.5 kW of power to make the blocks on a hard surface.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow
- Capacity: 560 blocks/hour
- Weight: 1200 Kg
- Molding Time: 45 seconds

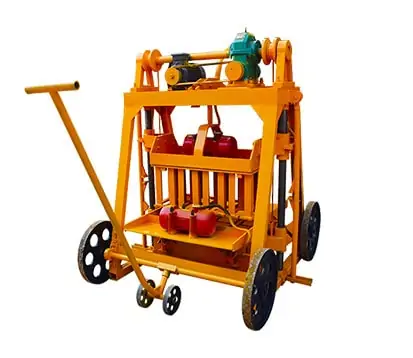

QMJ4-45 Fly Ash Hand Block Making Machine
QMJ4-45 has a vibrator motor that helps perform the molding of the blocks. Raw material like coal fly ash and other industrial waste material can also be used for making the blocks. This machine saves the cost of making a kiln to heat the blocks.
With a 7 piece mold with this machine, you can produce 560 blocks in an hour. Requires only 6.5 kW of power to make the blocks on a hard surface.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow
- Capacity: 560 blocks/hour
- Weight: 1200 Kg
- Molding Time: 45 seconds
You can buy a QMY4-30 hand-operated machine that requires no pallets. Demolding is done using hydraulics. Material is to be fed by the workers; everything else is machine operated. Every mold cycle is about 25 to 30 seconds.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow and Solid
- Capacity: 1008 blocks/hour
- Weight: 1000 Kg
- Molding Time: 25 to 30 seconds

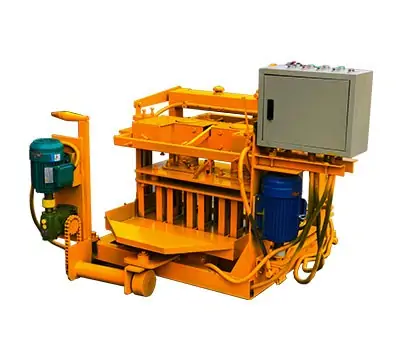

QMY4-30 Concrete Hand Brick Making Machine
You can buy a QMY4-30 hand-operated machine that requires no pallets. Demolding is done using hydraulics. Material is to be fed by the workers; everything else is machine operated. Every mold cycle is about 25 to 30 seconds.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow and Solid
- Capacity: 1008 blocks/hour
- Weight: 1000 Kg
- Molding Time: 25 to 30 seconds
QCM4-30 makes bricks on solid floors without any pallets. You will need two workers to manually put pressure for molding and decoupling. After the decoupling, the machine is moved using the wheelbase. The same model can be ordered with either a diesel engine or an electric motor.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow
- Capacity: 840 blocks/hour
- Weight: 900 Kg
- Molding Time: 30 seconds

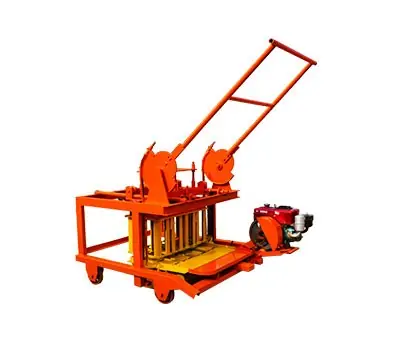

QCM4-30 Hand Fly Ash Block Making Machine
QCM4-30 makes bricks on solid floors without any pallets. You will need two workers to manually put pressure for molding and decoupling. After the decoupling, the machine is moved using the wheelbase. The same model can be ordered with either a diesel engine or an electric motor.
Technical Specifications:
- Block sizes: 400x200x200mm, 400x150x200mm, and 400x100x200mm
- Block produced: Hollow
- Capacity: 840 blocks/hour
- Weight: 900 Kg
- Molding Time: 30 seconds
You can use LT2-40 as a hand-operated clay brick machine. It requires only one worker to operate. There are no hydraulics and everything is done manually. The funnel is fed with material manually and molding is done manually as well. The cost is less as compared to other machines. Labor requirement is less as well.
It has a highly durable mold for 2 bricks in a single cycle.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 180 bricks/hour
- Weight: 340 Kg
- Molding Time: 40 to 45 seconds

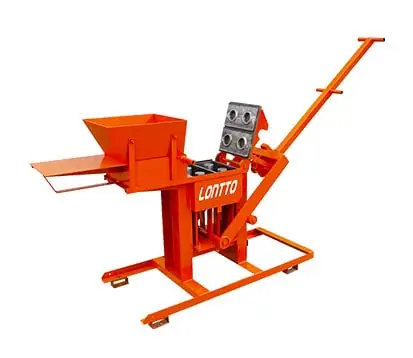

LT2-40 Hand Clay Brick Making Machine
You can use LT2-40 as a hand-operated clay brick machine. It requires only one worker to operate. There are no hydraulics and everything is done manually. The funnel is fed with material manually and molding is done manually as well. The cost is less as compared to other machines. Labor requirement is less as well.
It has a highly durable mold for 2 bricks in a single cycle.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 180 bricks/hour
- Weight: 340 Kg
- Molding Time: 40 to 45 seconds
ECO BRAVA is a lightweight clay brick production machine. It is a hand-operated machine that has a capacity of 360 bricks per hour. This machine makes a brick every 10 seconds. The funnel is manually fed by the workers and the machine operates with the help of hydraulics to compress the clay to make the bricks.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 360 bricks/hour
- Weight: 400 Kg
- Molding Time: 5 to 10 seconds

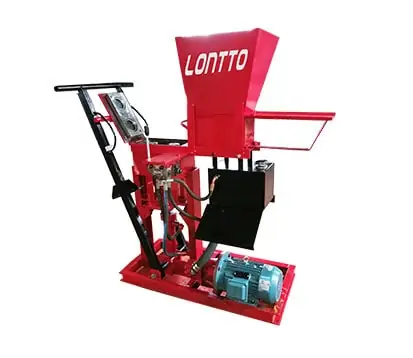

ECO BRAVA Hand Clay Brick Making Machine
ECO BRAVA is a lightweight clay brick production machine. It is a hand-operated machine that has a capacity of 360 bricks per hour. This machine makes a brick every 10 seconds. The funnel is manually fed by the workers and the machine operates with the help of hydraulics to compress the clay to make the bricks.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 360 bricks/hour
- Weight: 400 Kg
- Molding Time: 5 to 10 seconds
ECO BRB is a hand clay brick-making machine that produces hollow, sloid, and interlocking bricks. The material is fed into the funnel manually. Then the material is placed inside the molds using a sliding mechanism. The process of compressing and molding happens with the hydraulic system. A manual lever is used to control the hydraulic compression from the bottom to the upward side.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 720 bricks/hour
- Weight: 500 Kg
- Molding Time: 5 to 10 seconds

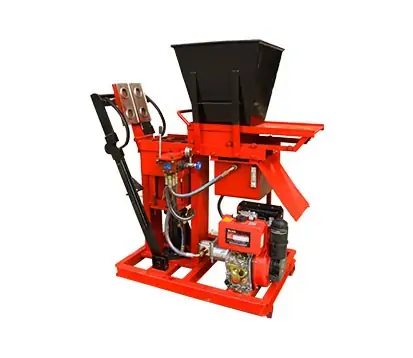

ECO BRB Hand Clay Brick Making Machine
ECO BRB is a hand clay brick-making machine that produces hollow, sloid, and interlocking bricks. The material is fed into the funnel manually. Then the material is placed inside the molds using a sliding mechanism. The process of compressing and molding happens with the hydraulic system. A manual lever is used to control the hydraulic compression from the bottom to the upward side.
Technical Specifications:
- Brick Size: 350x150x100mm
- Bricks produced: Hollow and Solid
- Capacity: 720 bricks/hour
- Weight: 500 Kg
- Molding Time: 5 to 10 seconds
M7MI requires three workers to operate. It has rubber tires which makes it highly mobile. The mixer is attached on one side, the feeder funnel is mounted on the top. Material from the mixer is carried by a worker to feed the molds.
Additional equipment can also be purchased with this model. You can buy a soil screen to remove impurities from the soil. Soil crushers can help you to crush the solid lumps to ensure uniformity. The best feature is mobility with rubber tires, it can be easily pulled using a small vehicle.
Technical Specifications:
- Brick Size: 230x220x115mm
- Bricks produced: Solid
- Capacity: 360 bricks/hour
- Weight: 950 Kg
- Molding Time: 5 to 10 seconds

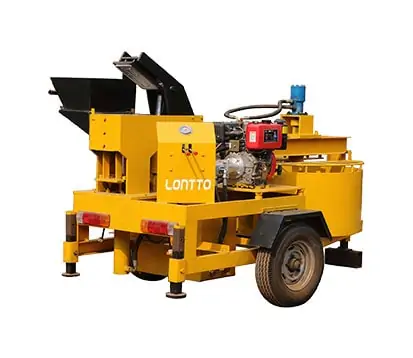

M7MI Hand Clay Brick Making Machine
M7MI requires three workers to operate. It has rubber tires which makes it highly mobile. The mixer is attached on one side, the feeder funnel is mounted on the top. Material from the mixer is carried by a worker to feed the molds.
Additional equipment can also be purchased with this model. You can buy a soil screen to remove impurities from the soil. Soil crushers can help you to crush the solid lumps to ensure uniformity. The best feature is mobility with rubber tires, it can be easily pulled using a small vehicle.
Technical Specifications:
- Brick Size: 230x220x115mm
- Bricks produced: Solid
- Capacity: 360 bricks/hour
- Weight: 950 Kg
- Molding Time: 5 to 10 seconds
M7MI TWIN hand clay brick-making machine is self-starting equipment with a press of a button. This machine uses a powerful diesel engine with two cylinders. Every action is done using hydraulics by a manual lever. Even the mixer is fed through a feeder. The raw material is loaded inside the tipper hopper, which upon pulling the liver lifts and feeds the mixer.
Two operating handles make it a manually operated machine but reduces the manual labor involved. More than 30 types of clay bricks can be made using different molds.
Technical Specifications:
- Brick Size: 230x220x115mm
- Bricks produced: Solid
- Capacity: 720 bricks/hour
- Weight: 1900 Kg
- Molding Time: 40 to 45 seconds
M7MI TWIN Hand Clay Brick Making Machine
M7MI TWIN hand clay brick-making machine is self-starting equipment with a press of a button. This machine uses a powerful diesel engine with two cylinders. Every action is done using hydraulics by a manual lever. Even the mixer is fed through a feeder. The raw material is loaded inside the tipper hopper, which upon pulling the liver lifts and feeds the mixer.
Two operating handles make it a manually operated machine but reduces the manual labor involved. More than 30 types of clay bricks can be made using different molds.
Technical Specifications:
- Brick Size: 230x220x115mm
- Bricks produced: Solid
- Capacity: 720 bricks/hour
- Weight: 1900 Kg
- Molding Time: 40 to 45 seconds
You can buy LMT4-40 which is a hand-operated concrete brick-making machine. Concrete bricks of solid shape can be made using different types of molds. Two workers are required for operating the machine and carrying the material. Bricks are carried out using a cart.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 2163 solid bricks/hour
- Weight: 2000 Kg
- Molding Time: 30 to 40 seconds

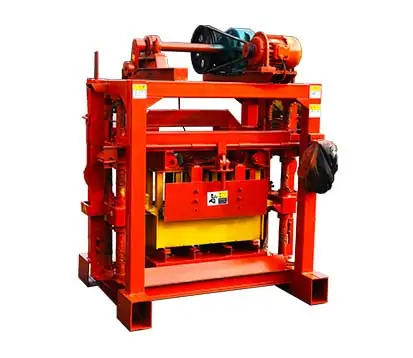

LMT4-40 Hand Concrete Brick Making Machine
You can buy LMT4-40 which is a hand-operated concrete brick-making machine. Concrete bricks of solid shape can be made using different types of molds. Two workers are required for operating the machine and carrying the material. Bricks are carried out using a cart.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 2163 solid bricks/hour
- Weight: 2000 Kg
- Molding Time: 30 to 40 seconds
LMT4-35 hand concrete brick-making machine uses manual labor to create solid and hollow bricks. The mixer and the main machine are palace on the solid floor along with a belt conveyor. Workers have to put the raw material in the right proportion inside the mixer. The molds are also spread with material manually to remove any irregularities.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 2520 solid bricks/hour
- Weight: 3000 Kg
- Molding Time: 30 to 35 seconds

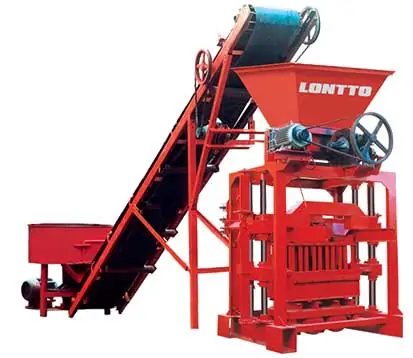

LMT4-35 Hand Concrete Brick Making Machine
LMT4-35 hand concrete brick-making machine uses manual labor to create solid and hollow bricks. The mixer and the main machine are palace on the solid floor along with a belt conveyor. Workers have to put the raw material in the right proportion inside the mixer. The molds are also spread with material manually to remove any irregularities.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 2520 solid bricks/hour
- Weight: 3000 Kg
- Molding Time: 30 to 35 seconds
You can operate LMT4-26 with a control box. This box has various buttons for input commands. LMT4-26 uses industrial waste, sand, cement, and concrete to make solid and hollow bricks.
One block mold and the spare part box are free with this model. Material is uniformly spread on the molds to make the bricks. The rest of the work is done mechanically using the control box. Bricks are placed on the carrier automatically.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 4264 solid bricks/hour
- Weight: 4200 Kg
- Molding Time: 22 to 26 seconds
LMT4-26 Hand Concrete Brick Making Machine
You can operate LMT4-26 with a control box. This box has various buttons for input commands. LMT4-26 uses industrial waste, sand, cement, and concrete to make solid and hollow bricks.
One block mold and the spare part box are free with this model. Material is uniformly spread on the molds to make the bricks. The rest of the work is done mechanically using the control box. Bricks are placed on the carrier automatically.
Technical Specifications:
- Brick Size: 400x200x200mm
- Bricks produced: Hollow and Solid
- Capacity: 4264 solid bricks/hour
- Weight: 4200 Kg
- Molding Time: 22 to 26 seconds
Welcome to Visit Hand Brick Making Machines Manufacturer
Hand brick making machine include hand concrete block machine and hand clay brick machine. The 30 years of experience factory.
Contact Us For a Factory VisitLontto Hand Brick Making Machines
Lontto has used their research to develop these hand-operated brick-making machines that are cheaper than bigger machines. These machines are best for small and medium businesses. There are three categories of these machines: small, medium, and large. The smallest machines use very little manpower. Only one person and in some cases two workers are enough for operating these machines.
The advantage of small mobile machines is that they can be easily moved with or without a pulling vehicle. The feeding mechanism is also simple and only one worker can easily meet the requirement of feeding the mixer.
Lontto is ISO 9001 certified company that has global patents that sum up to 40 in number. These patients have been acquired by Lontto for various models of equipment.
Use of Innovative approach to make brick making machines
Lontto has a clear focus on meeting the small and medium businesses sustainably. If you look to buy the small machines your business can sustain the operation for a long period. The molds of these machines are highly durable and can last up to 5 to 6 years.
If you opt for the higher models that use hydraulics and control units then you can save the labor cost as only 1 or 2 workers can handle the operational load.
Hand Brick Making Machine: The FAQ Guide
- What is a hand brick making machine or a hand brick machine?
- What kind of raw material can I use in the concrete hand block-making machines?
- What material is used in a clay brick making machine?
- How many workers are required to operate these hand-press brick-making machines?
- How many bricks can a hand-operated brick-making machine make in a day?
- Why is Lontto the best supplier for hand-operated fly ash brick-making machines?
- Where can I find the hand press brick making machine price list?
- How can I place my order for one of the hand clay brick machines from Lontto?
- How can I troubleshoot the problems after the purchase?
- Conclusion
What is a hand brick making machine or a hand brick machine?
Any machine that uses manual operation to make bricks of various types is called a hand brick-making machine. Some of the machines use manual force for molding while others use manual power for operating the livers.
Machines like M7MI TWIN use hydraulics and operating handles to perform various actions.
What kind of raw material can I use in the concrete hand block-making machines?
Concrete Hand block-making machines use fly ash, sand, cement, and gravel.
What material is used in a clay brick making machine?
Most of the hand pressing machines can make 1 or 2 bricks per cycle and mostly clay is used in the clay brick making machines. Clay with cement or only a mixture of clay with water. For example ECO BRAVA and ECO BRB are clay brick making machines.
How many workers are required to operate these hand-press brick-making machines?
Except for the smallest models like LT2-40, usually, 2 workers are required. If you want to make the process faster and increase the production use 3 workers in manual brick machines. The machine with hydraulics doesn’t require the labor for pressing molding action.
| Hand Brick Making Machine | Number of Workers |
| LMT4-40 | 2 |
| LMT4-35 | 2 |
| LMT4-26 | 2 |
| ECO BRAVA | 1-2 |
| ECO BRB | 1-2 |
| LT2-40 | 1 |
| M7MI | 2 |
| M7MI TWIN | 2 |
| QMJ2-40 | 1 |
| QMJ4-45 | 2 |
| QMY4-30 | 1-2 |
| QCM4-30 | 2 |
How many bricks can a hand-operated brick-making machine make in a day?
You can use LT2-40 and QMJ2-40 to produce up to 1500 bricks in a day. Both these machines use manual force to press the lever and form the bricks. LMT4-40, LMT4-35, and LMT4-26 all have a high output of 17000 to 34000 bricks in a single day(8 hours).
| Hand Brick Machine | Bricks/Hour |
| LMT4-40 | 17304 |
| LMT4-35 | 20160 |
| LMT4-26 | 34112 |
| ECO BRAVA | 2880 |
| ECO BRB | 5760 |
| LT2-40 | 1440 |
| M7MI | 2880 |
| M7MI TWIN | 5760 |
| QMJ2-40 | 1440 |
| QMJ4-45 | 4480 |
| QMY4-30 | 8064 |
| QCM4-30 | 6720 |
Why is Lontto the best supplier for hand-operated fly ash brick-making machines?
Lontto has over 30 years of experience in hand brick-making machine manufacturing. All these machines are made from research and technological developments over many decades. Along with the tech, their staff is also highly qualified to help support customers in a better way.
Where can I find the hand press brick making machine price list?
The price of these machines starts from $700 to $9000. This price range can accommodate every business category in various countries globally. Some of the costly models are also beneficial for large businesses. The cost of labor is saved by these high-end machines.
Below is the price list of hand-operated brick making machines
| Hand Brick Machine | Price in USD |
| LMT4-40 | $2500 – $3500 |
| LMT4-35 | $4500 – $6000 |
| LMT4-26 | $6000 – $9000 |
| ECO BRAVA | $2000 – $3000 |
| ECO BRB | $25000 – $3000 |
| LT2-40 | $700 – $1200 |
| M7MI | $4200 – $6500 |
| M7MI TWIN | $5800 – $8450 |
| QMJ2-40 | $1000 – $1350 |
| QMJ4-45 | $3700 – $4500 |
| QMY4-30 | $3800 – $4700 |
| QCM4-30 | $3000 – $4000 |
How can I place my order for one of the hand clay brick machines from Lontto?
To place your order you need to contact Lontto through their website chat or calling option. First, finalize your model and then place the order. The next step will be locating the nearest seaport for the delivery. Lontto supplies in more than 100 countries through various merchant navies companies.
How can I troubleshoot the problems after the purchase?
If you face any issue after the purchase or you want to get training for operating the machines simply call the customer care service. Lontto has 24/7 customer care executives waiting for your calls.
Conclusion
To purchase hand-operated brick-making machines Lontto is the best option. They have the resources and infrastructure to support you anywhere in the world. Their technology is globally accepted and trusted.
Frequently Asked Questions (FAQs)
How does Lontto ensure the quality of its brick machines?
Lontto ensures quality through high-quality materials, efficient designs, strict manufacturing protocols, comprehensive testing, and obtaining relevant certifications. They continuously enhance machine quality based on customer feedback and provide robust after-sales support.
What transportation options are available?
Lontto primarily uses sea freight from Qingdao, China. Medium-sized machines fit in a 20-foot container, while larger machines require 40-foot high containers.
How long does delivery take on average?
Delivery times vary: approximately 30-40 days to Africa, 10 days to Asia, and 30 days to South America.
How does insurance for delivery work?
Lontto uses CIF trade terms, incorporating marine insurance to cover damages or loss during shipment, allowing for insurance claims if needed.
How does Lontto assist with customs clearance for international orders?
Lontto assists with all necessary documentation for customs clearance and has partnerships with local customs agents in various countries to facilitate the process.
How long is the warranty on Lontto Brick Making Machines?
Lontto offers a 1-year warranty covering defects in materials and craftsmanship, with free repairs or replacement parts, excluding shipping costs. The probability of requiring replacements is low, but support is assured if needed.
Price Quote
Call Us
